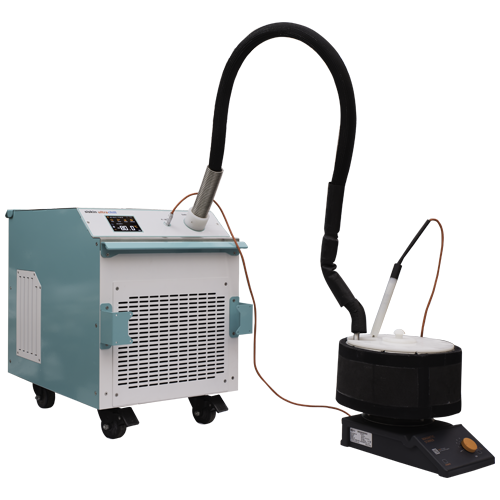

Immersion Coolers:RFC-25

View Specificationsor Enquire

RFC-25

FeatureSpecification
Functional
Immersion probe typeRigid cylindrical
Dewar vessel volume2.5 Litres...3 Litres
Designed temperature range-35.0 °C...Ambient
Working temp. range: +25.0 °C Amb.-35.0 °C...Ambient
Working temp. range: +35.0 °C Amb.-30.0 °C...Ambient
RefrigerantR404A (ODP: 0, GWP: 3920)
R23 HFC (ODP: 0, GWP: 14,800)
Cooling capacity: +25.0 °C Amb.
+20.0 °C
0.0 °C
-20.0 °C
-40.0 °C
-60.0 °C
-80.0 °C

360 Watts
280 Watts
140 Watts
-
-
-
Temperature selection3.5”, resistive touchscreen
Temperature indication3.5”, (color) TFT LCD display
Display resolution0.1 °C
Temperature stability± 1.0 °C
Pre-selectable temperature points3 points (Sp1...Sp3)
External temp. control sensorClass-A, 4-wire, Pt-100
(with Lemosa termination)
Temperature controlPID
PID self-tuning3 PID coefficient tuples for Spx, ∀x ∈ 1...3
Real temp. correction (RTC)3 offsets for Spx, ∀x ∈ 1...3
Safety
Safety temperature limitsSelectable high and low limits
Over current protectionEnabled: MCB
Autostart functionSelectable
Safety second stage enable timerProvided
General
Material of construction
(Immersible parts)
Rigid SS-304 probe
Heater power (Watts)Hot gas bypass valve
Circulation pumpOptional: External magnetic stirrer
Power supply requirement230 VAC ± 10 %, 50 Hz, 1 Phase
Net weight (Kg)60.0 Kg
Dimensions (L x W x H)590 (mm) x 390 (mm) x 520 (mm)
