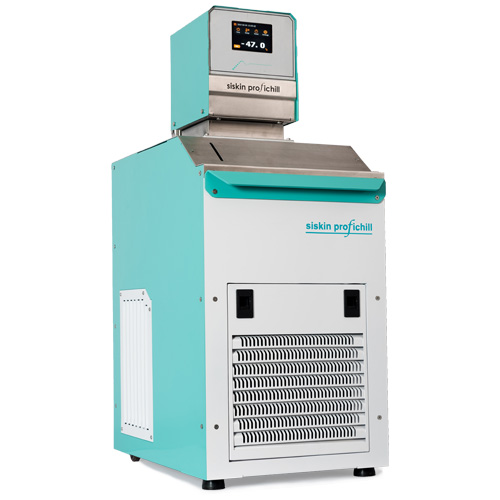

Recirculating chillers:RCC-3500 ST-40

View Specificationsor Enquire

RCC-3500 ST-40

FeatureSpecification
Functional
Designed temperature range-10.0 °C...+40.0 °C
Working temp. range: +25.0 °C Amb.-10.0 °C...+40.0 °C
Working temp. range: +35.0 °C Amb.-5.0 °C...+40.0 °C
RefrigerantR452A (ODP: 0, GWP: 1945)
Cooling capacity: +25.0 °C Amb.
+20.0 °C
0.0 °C

3200 (min)...3600 (max) Watts
1400 (min)...1600 (max) Watts
Temperature selection3.5”, resistive touchscreen
Temperature indication3.5”, (color) TFT LCD display
Display resolution0.1 °C
Temperature stability± 0.1 °C
Pre-selectable temperature points3 points (Sp1...Sp3)
Internal temp. control sensorClass-A, 4-wire, Pt-100
Temperature controlPID
PID self-tuning3 PID coefficient tuples for Spx, ∀x ∈ 1...3
Real temp. correction (RTC)3 offsets for Spx, ∀x ∈ 1...3
Heating power indicator (digital)Provided: As a % of available heating power
Safety
Safety temperature limitsSelectable high and low limits
Low liquid level protectionEnabled with SS-304 float
Over current protectionEnabled: MCB
Autostart functionSelectable
Pump circulation in standby modeSelectable
Under voltage detectionProvided
Over voltage detectionProvided
Phase lossProvided
Phase reversalProvided
General
Material of construction
(Immersible parts)
SS-304
Heater power (Watts)3000 W
High pressure and flow rate pumpOptional-1: 1.0 bar, 25 LPM
Optional-2: 2.5 bar, 30 LPM
Optional-3: 5.0 bar, 50 LPM
Power supply requirement400 VAC ± 10 %, 50 Hz, 3 Phase
Net weight (Kg)107.2 Kg
Dimensions (L x W x H)705 (mm) x 505 (mm) x 1060 (mm)
