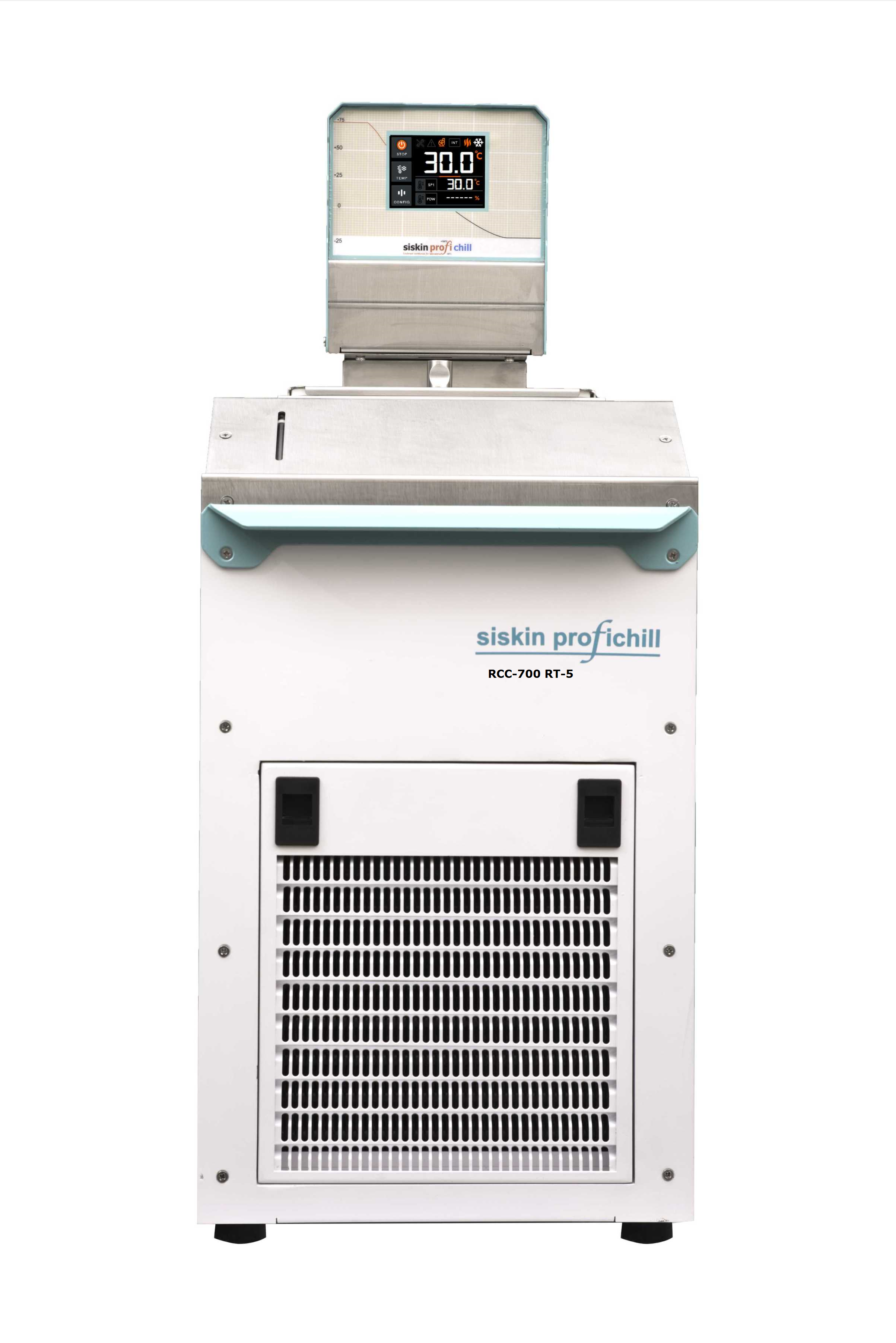

Recirculating chillers:RCC-700 RT-5

View Specificationsor Enquire

RCC-700 RT-5

FeatureSpecification
Functional
Designed temperature range-25.0 °C...+40.0 °C
Working temp. range: +25.0 °C Amb.-20.0 °C to amb.
Working temp. range: +35.0 °C Amb.-20.0 °C...+40.0 °C
Refrigerant
R134a / R404a / R290
Cooling capacity at
+10°C (watt)

350.0 Watts

Temperature selection3.5”, resistive touch sensitive screen
Temperature indication3.5”, (color) TFT LCD display
Display resolution0.1 °C
Temperature stability± 0.1 °C
Pre-selectable temperature points3 points (Sp1...Sp3)
Internal temp. control sensorClass-A, 4-wire, Pt-100
Temperature controlPID
PID self-tuning3 PID coefficient tuples for Spx, ∀x ∈ 1...3
Real temp. correction (RTC)3 offsets for Spx, ∀x ∈ 1...3
Heating power indicator (digital)Provided: As a % of available heating power
Safety
Safety temperature limitsSelectable high and low limits
Low liquid level protectionEnabled with SS-304 float
Over current protectionEnabled: MCB
Autostart functionSelectable
Pump circulation in standby modeSelectable
Ref. leak detection + exhaust controlOn specific request:
Valid only for R290 refrigerant systems
General
Material of construction
(Immersible parts)
SS-304
Heater power (Watts)1500 W
Pump flow rate (Litres/Minute):
Water
Water + Ethylene Glycol
Ethanol

16...18 LPM
9...11 LPM at 0.0 °C
16...18 LPM
Pump pressure (bar)0.35 bar
Power supply requirement230 VAC ± 10 %, 50 Hz, 1 Phase
Net weight (Kg)61.8 Kg
Dimensions (L x W x H)560 (mm) x 320 (mm) x 750 (mm)
